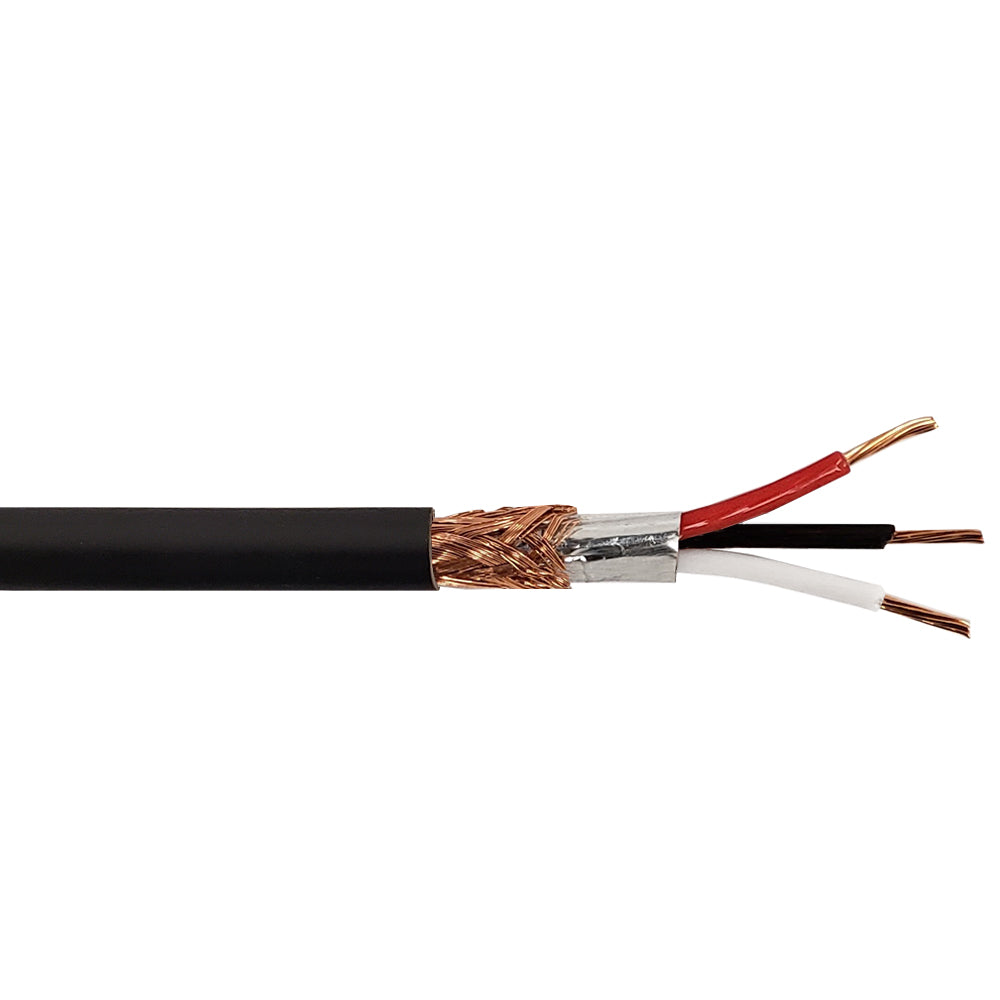

This bulk plenum audio cable consists of 3 conductors of 22AWG stranded wire, is black in color and 1000 feet in length. It is typically used to interconnect audio devices in plenum environments.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Color | Black |
| Number of Conductors | 3 Conductors |
| Wire Gauge | 22AWG Stranded |
| Conductor Material | 100% Bare Copper |
| Conductor Size | 7/0.254±0.008mm |
| Insulation Min Avg Thickness | 0.20mm |
| Insulation Material | FEP |
| Insulation Outer Diameter | 1.3±0.03mm |
| Jacket Material | PVC – Polyvinyl Chloride |
| Jacket Rating | CMP |
| Jacket Min Avg Thickness | 0.34mm |
| Jacket Outer Diameter | 5.0±015mm |
| Cable Shielding | 90% Copper Braid, 100% Mylar Foil |
| Temperature Rating | 75℃ |
| Conductor Resistance | 20℃ Max 22AWG: 55ohm/km |
| Voltage | 300V |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 23.54 lbs |
Spec Sheets
Download spec sheet
