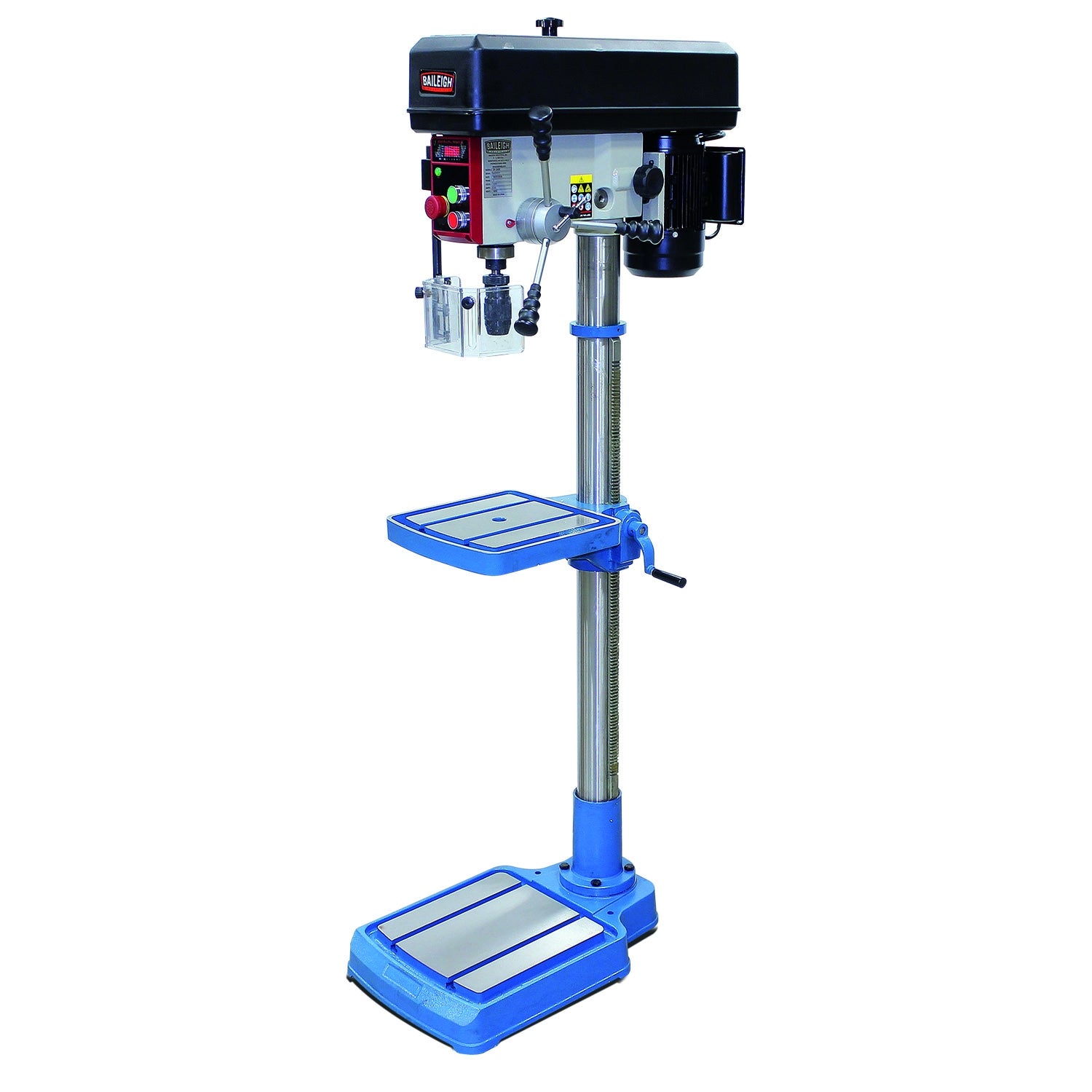

This economical belt driven drill press runs smoothly even at full capacity – the DP-1000E is a 15-1/2″ drill press with an MT2 Taper that lets you run tooling at the proper speed to fit your application with its 5 speed pulley configuration which helps extend tooling life.
- .5 hp motor requires 110 volt power and will work at any shop or site.
- Belt driven head drills a maximum capacity of 1” steel.
- 5 speeds in the range from 250 to 2900 rpm to suit your application.
- 3-1/8″ steel column eliminates flexing even when drilling at full capacity.
- Rigid cast iron base and table add strength to the drill’s structure.
- Includes a safety shield around the drill head to protect you.
- Baileigh backs this drill press machine with a 1-year parts warranty and lifetime technical support by phone from our experienced team.
Specifications
Item Number DP-1000E
Swing 15-1/2″
Diameter of Column 3-1/8″
Spindle Travel 3″
Base Size 23″ x 16″
T-Slot Width 1/2″
Table Size 12-1/2″ x 12-1/2″
Speeds 5
Quill Diameter 2″
Spindle Nose to Table 5-1/2″ Min. To 35-1/2″ Max.
Spindle Nose to Base 47-1/2″
Spindle Taper MT2
Table Angle Adj 360°
Main Motor 1/2 hp
Rpm 250, 700, 1150, 1900, & 2900
Drill Capacity Steel 1″
Power 110 Volt
Shipping Weight 290lbs
Special Notes B-16 1-16mm Keyless Chuck, MT2 to B16 Arbor, Drift Key
Certification CE
Shipping Dimensions (Inches) 60x44x21
