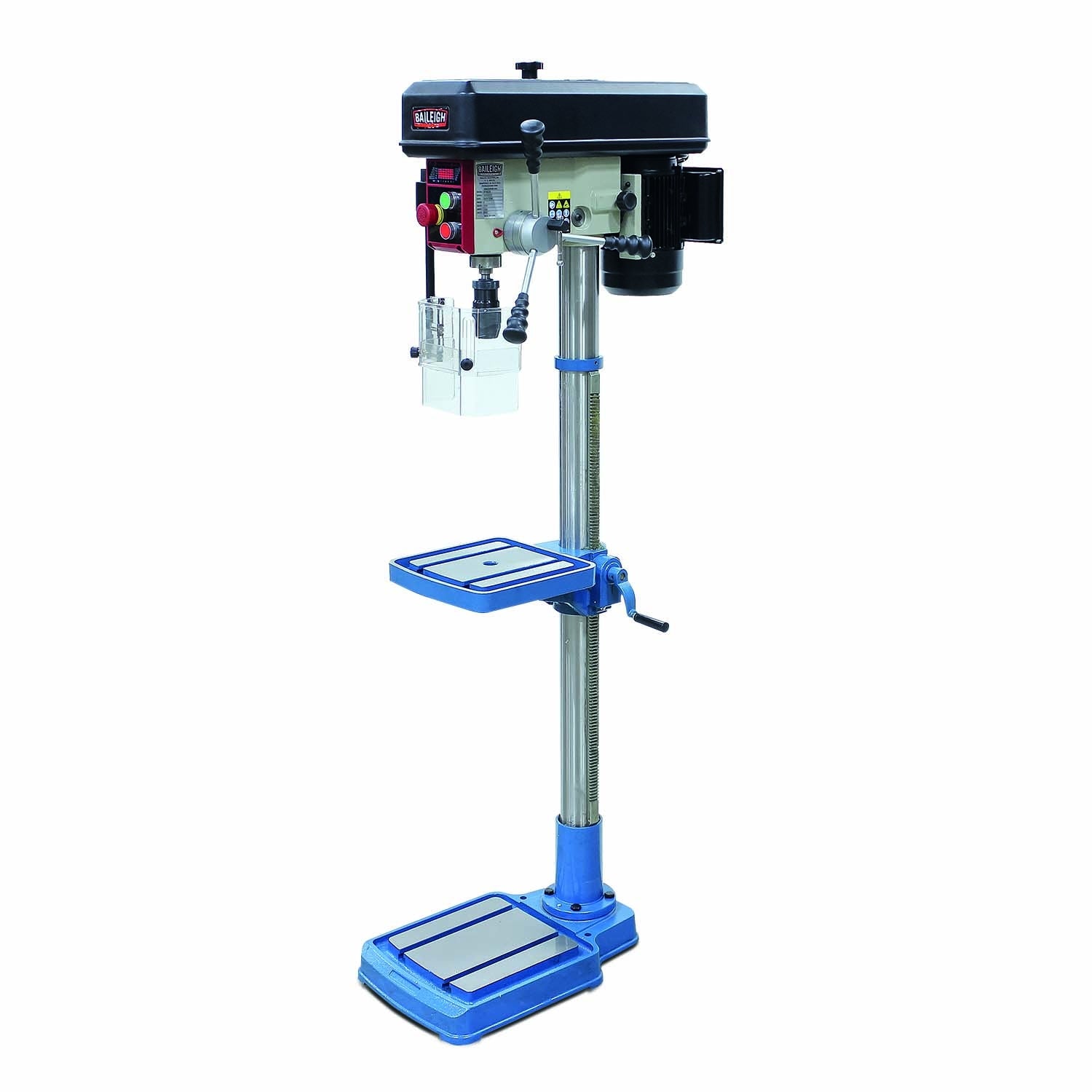

Baileigh Drill Press DP-0625E Cheap In China

This economical belt driven drill press runs smoothly even at full capacity – this 14″ drill press lets you run tooling at the proper speed to fit your application with its 5 speed pulley configuration which helps extend tooling life.

• .5 hp motor requires 110 volt power and will work at any shop or site.
• Belt driven head drills a maximum capacity of 5/8” steel.
• 5 speeds in the range from 250 to 2900 rpm to suit your application.
• 2-7/8″ steel column eliminates flexing even when drilling at full capacity.
• Rigid cast iron base and table add strength to the drill’s structure.
• Includes a safety shield around the drill head to protect you.
• Baileigh backs this drill press machine with a 1-year parts warranty and lifetime technical support by phone from our experienced team.

Specifications

Item Number DP-0625E
Spindle Speeds 5
Swing 14″
Diameter of Column 2-7/8″
Base Size 25-3/4″ x 16-1/2″
Table Size 11″ x 11″
Quill Diameter 1-3/4″
Spindle Nose to Table 6″ Min to 36″ Max
Spindle Nose to Base 48″
Spindle Taper B16
Table Angle Adj 360°
Main Motor 1/2 hp
Rpm 250, 700, 1150, 1900, & 2900
Drill Capacity Steel 5/8″
Power 110 Volt
Shipping Weight 240lbs
Special Notes Includes B-16 1-16mm Keyless Chuck
Shipping Dimensions (Inches) 69x44x23
