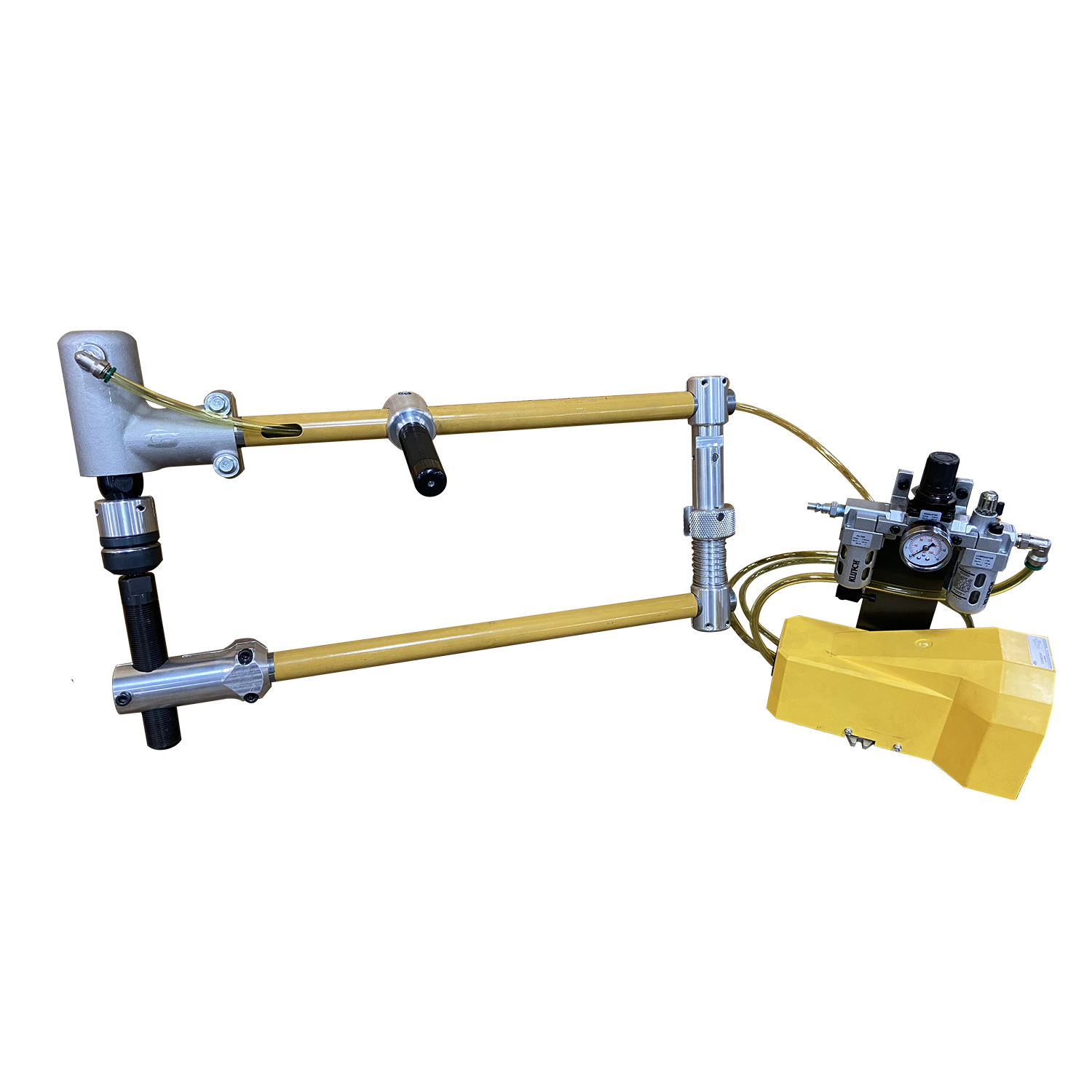

Baileigh Handheld Air-Powered Planishing Hammer AH-24H Finishline For Sale

The most versatile planishing hammer on the market, this hand held air-powered model lands 3,200 beats per minute to give you a smooth finish. The PH-24H has a unique hinged spine that allows you to get into spaces normally not available.

• Hinged spine -Allows for quick opening of the throat area for hard-to-reach work areas on.
• 16 gauge mild steel capacity.
• Adjustable throat depth; comes standard with 24″.
• Air motor runs on just 90-120 psi.
• Completely rebuildable air motor lets you change the characteristics of the hit for your application.
• Top and bottom supports have adjustable length for offset planishing.
• Foot pedal operation leaves your hands free to move the material.
• Includes 7 radius dies: flat, 2”, 3”, 6”, 8”, 12”, 24″ and 36”.
• Captured 2.5″ dia. top die; rubber O-ring detent keeping the top die from falling out when material is removed when hinge is opened or when material is removed
• Automatic oiler keeps your machine running smoothly and saves you time on maintenance.
• We offer an optional stand for more conventional applications.
• Covered by a 1-year parts warranty.

Specifications

Item Number AH-24H
Mild Steel Capacity 16 ga.
Tooling Height Adjustment 11″
Speed (Variable) 3200 beats / minute
Included Tooling Flat, 2″, 3″, 6″, 12″, 24″, 36″ Radii
Throat Depth 24″ adjustable
Aluminum Capacity 14 ga.
Power 80 – 120 Psi.
Shipping Weight 35 lbs
Special Notes Optional stand available
Shipping Dimensions (Inches) 60x44x68
