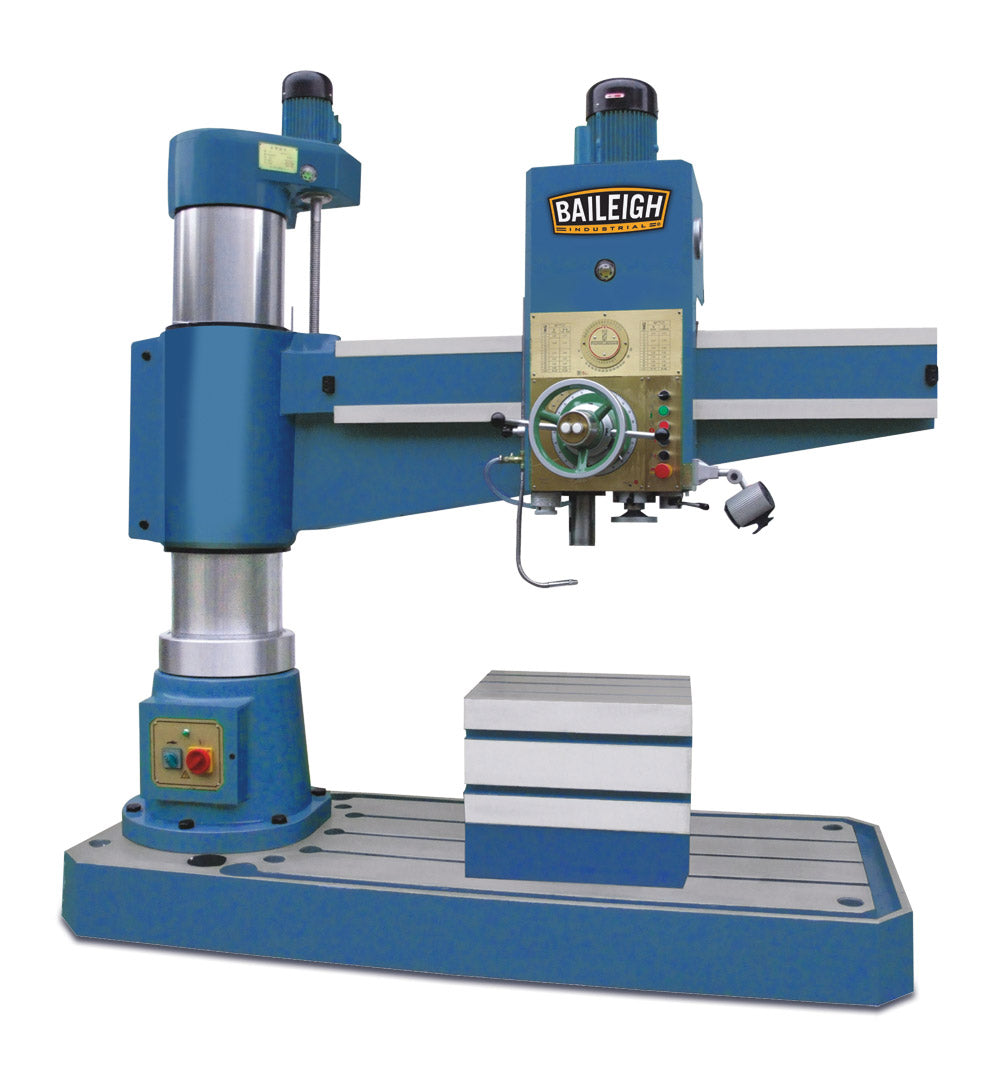

Are you in the market for a large radial drill for you fabrication shop? Does it have to have a really y large swing? Then the RD-1600H hydraulic radial drill press is for you. This press has a 5.25hp motor that is powered by 220 volt three phase power.
- 2″ maximum drilling capacity
- Heavy duty construction
- Power down feed
- MT5 spindle
- Large 63″ column
- Box shape worktable
- 220V 3-phase
- Includes spindle protection cover, quick chuck, tapping chuck, Industrial coolant system, work light, and box shaped work table.
Specifications
Item Number RD-1600H
Max. Drill Capacity 2″
Distance from Spindle to Column Center 13.7″ to 63″
Diameter of Column 13.7″
Spindle Taper MT5
Spindle Travel 12.4″
Spindle Speed Range 25 to 2000 rpm
Range of Spindle Feeds .001″ to .125″
Spindle Feeds 16
Distance Between Spindle Nose and Base 12.6″ to 48″
Table Size 24.8″ x 19.6″ x 19.6″
Base Size 94.4″ x 39.3″ x 7.8
Overall Size 98” x 40”~96” x 103”~112” ACcounting for Beam Movements
Motor 5.25 hp
Power 220V 3-phase
Shipping Weight 9500lbs
Shipping Dimensions (Inches) 109x45x102
