Baileigh Industrial Pneumatic Shop Press HSP-75A Buy Cheap Websites

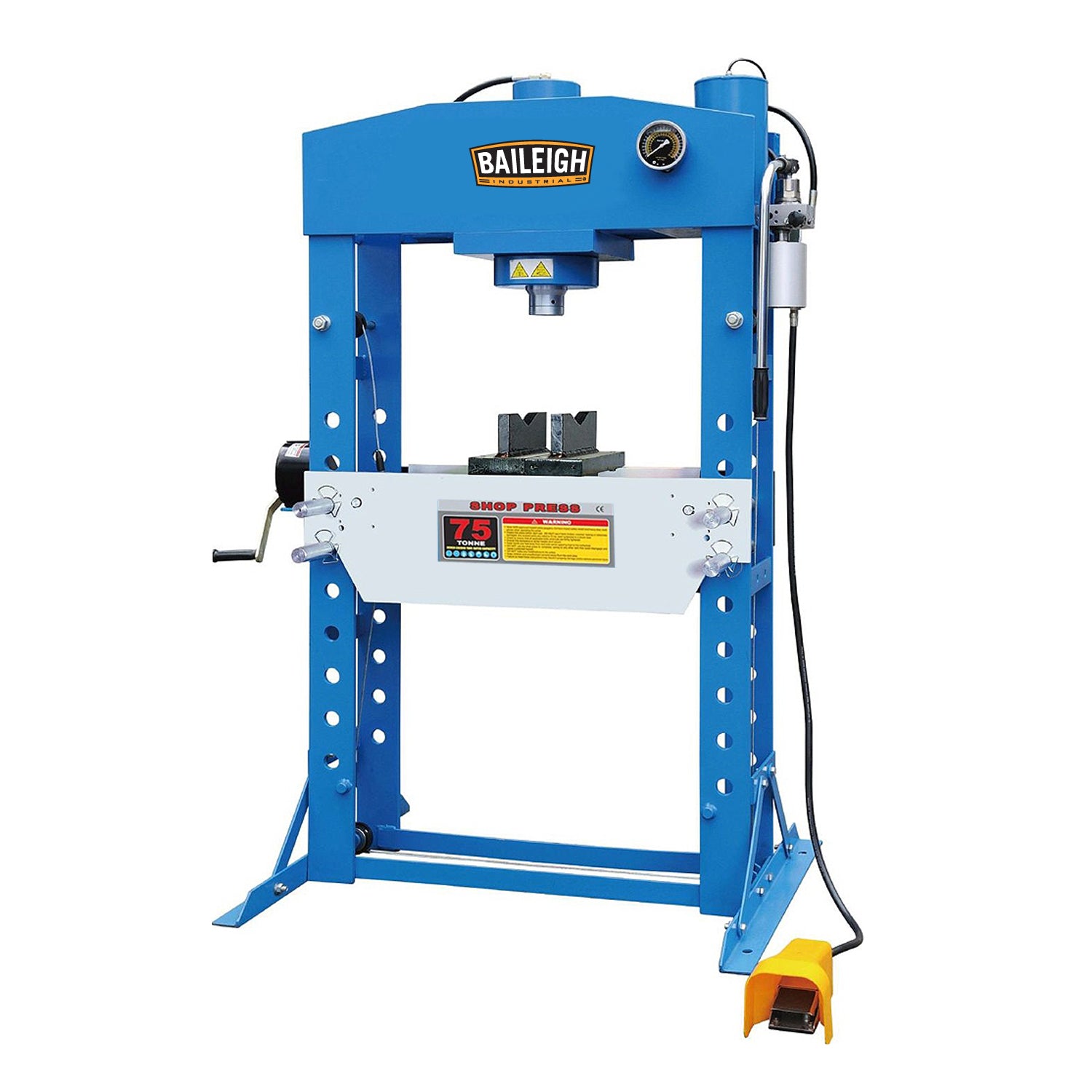

This H-frame press maintains accuracy with fully-welded steel main frame. Go ahead and use its full 75 tons of force. This air-powered shop press won’t flex or buckle on you!

• 31.5” working width.
• Large 9” diameter cylinder with a 9.8” stroke.
• Requires a 90 to 115 psi compressor.
• Industrial-grade hydraulics help the machine last and run smoothly for many years of productivity.
• Integrated foot pedal makes this H-frame press easy to control.
• If you’d like more delicate control, you can choose the manual hand pump located on the side of the HSP-75A.
• Winch and pulley system will save time when lifting and lowering the working table. (It also saves strain on your back muscles.)
• Comes standard with a V-block set.
• You can count on Baileigh for a 1-year parts warranty as well as lifetime technical support by phone.

SPECIFICATIONS

Item Number HSP-75A
Piston Head Diameter 3″
Movable Cylinder Yes
Working Width 31.5″
Maximum Capacity 75 tons
Cylinder Stroke 9.8″
Cylinder Diameter 9″
Distance From Table To Ram Min. 6.69″ – Max. 34.80″
Power Pneumatic / Manual
Shipping Weight 1110lbs
Shipping Dimensions (Inches) 83x44x16
