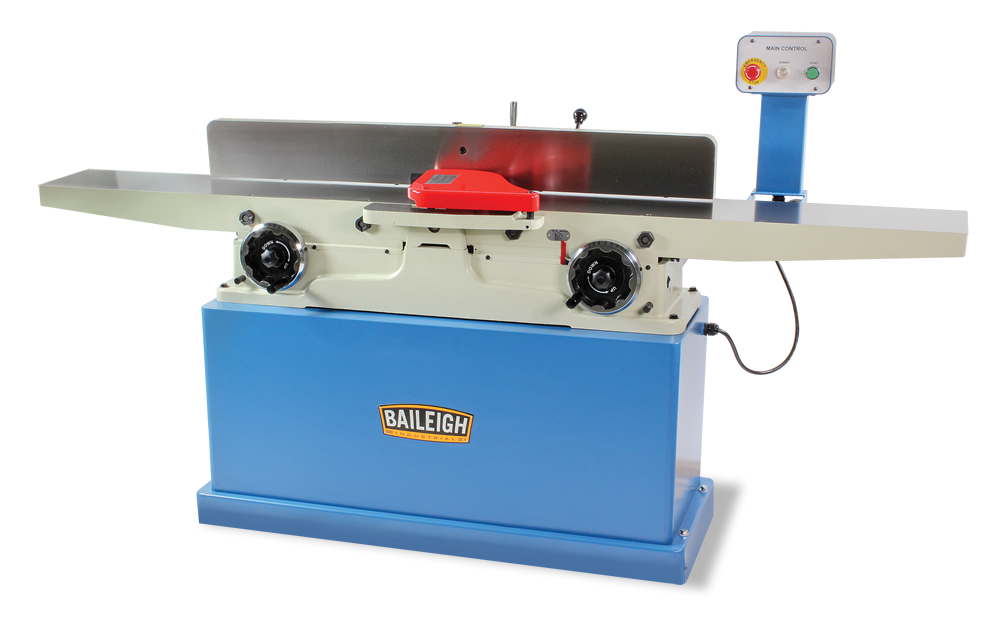

Baileigh Long Bed Parallelogram Jointer with Spiral Cutter Head Pre Order Online

We built this parallelogram jointer to meet the highest standards of safety and accuracy. An 83″ bed and 8” width let you easily cut flat surfaces and prepare edges for joining.

• 3 hp motor can handle even the toughest woods.
• Runs on 220-volt single-phase power, so you can use it just about anywhere.
• 4 row helical cutter head spins at 5,000 rpm.
• Extra-long 83″ bed gives you support when handling large pieces of material.
• Built-in rabbeting ledge helps you easily make grooves down the sides of boards for edge joining.
• 5.5” x 48” fence has positive stops at 45° and 90°.
• Non-mar insert allows the fence to avoid scratching the table surface during adjustments.
• You can quickly adjust the cut depth up to 1/8” by turning a convenient handwheel.
• Parallelogram design moves the table edge in an arc around the cutter head, keeping the gap consistent, no matter the cut depth.
• This style of jointer helps prevent accidents, like tipping a board into the gap between the cutter and the table or getting your hand caught in there.
• Design ensures that the table remains perfectly parallel, even after years of use.
• 4” dust port conveniently hooks up to your dust collection system, so your shop stays neat and clean.
• Base includes linear wheels, enabling you to easily move the machine.
• Covered by a 1-year parts warranty.
• Replacement parts are usually in stock so we can get them to you quickly.
• We provide lifetime technical support by phone from a team of woodworking experts.

SPECIFICATIONS

Item Number IJ-883P-HH
Shipping Weight 710lbs
Dust Collection Port 4″
Table Size (Length) 83″
Table Size (Width) 8″
RPM 5000
Fence Size 5.5” x 48”
Maximum Rabbeting Capacity 1/2″
Cutter Head Diameter 3-1/4″
Max Stock Width 8″
Jointer Maximum Cutting Depth 1/8″
Power 220V Single Phase
Horse Power 3
Weight (lbs) 710
Rabbet Ledge 3″ x 13-3/4″
Number of Inserts 36
Insert Rows 4
Shipping Dimensions (Inches) 88x29x44
