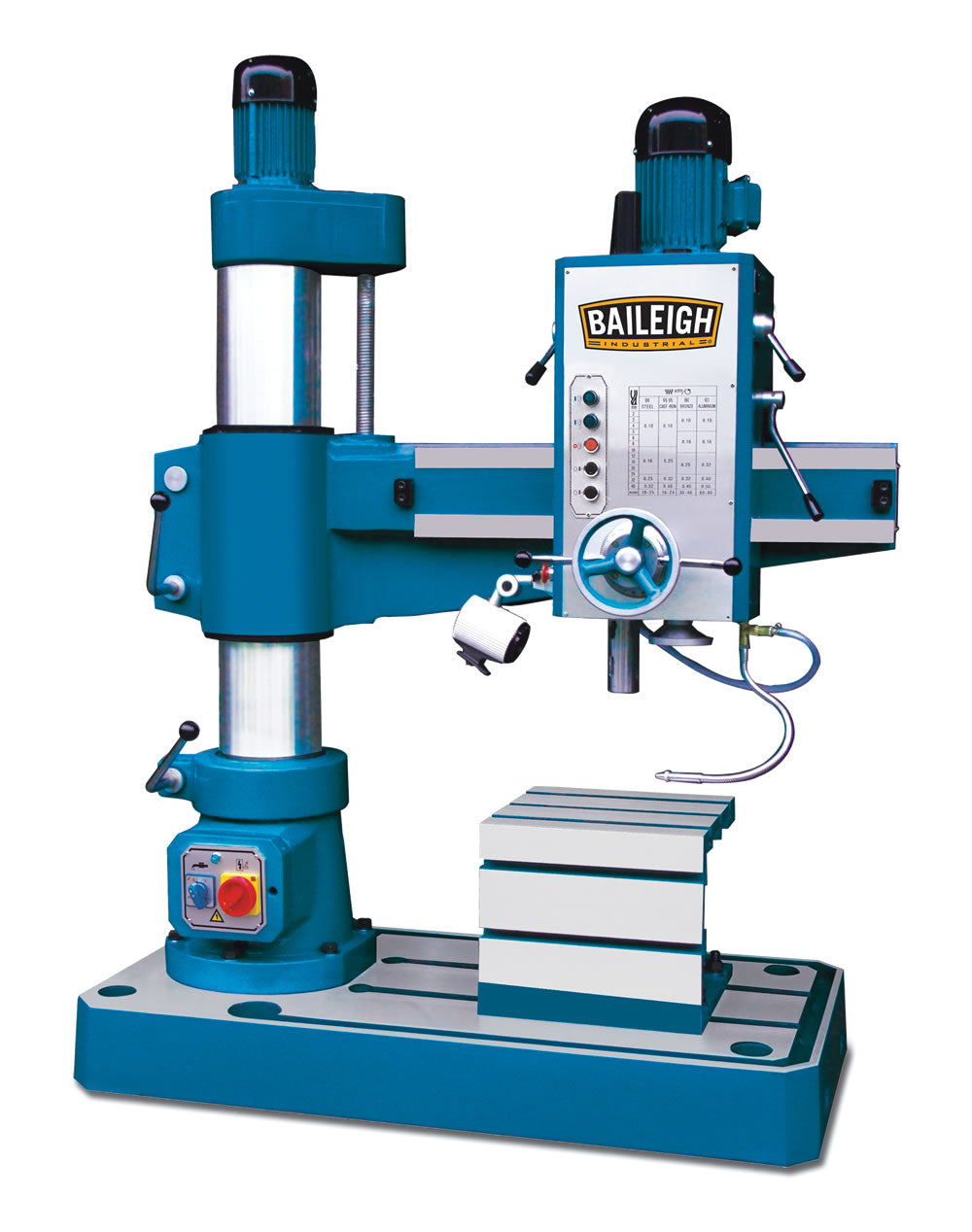

Baileigh Radial Drill RD-1000M Discount 2025 New

• 1.57″ maximum drilling capacity
• Heavy duty construction
• Power down feed
• MT4 spindle
• 39.3″ Reach
• 9.4″ Column
• Box Shape Worktable

Specifications

Item Number RD-1000M
Max. Drill Capacity 1.57″
Distance from Spindle to Column Center 7.8″ to 39.3″
Diameter of Column 9.4″
Spindle Taper MT4
Spindle Travel 9.8″
Spindle Speed Range 71 to 1800 rpm
Range of Spindle Feeds .005″ to .02″
Spindle Feeds 4
Distance Between Spindle Nose and Base 10.3″ to 41.8″
Table Size 15.7″ x 17.7″ x 15.7″
Base Size 29″ x 20″
Overall Size 68″ x 29.5″ x 93″
Motor 2 hp (Spindle) 3/4 hp (Lifting)
Coolant Pump 1/8 hp
Power 220V 3-phase
Shipping Weight 3740lbs
Shipping Dimensions (Inches) 69″ x 30″ x 93″
