RYK Modular M185 Sequencer Cheap Sale Free Shipping

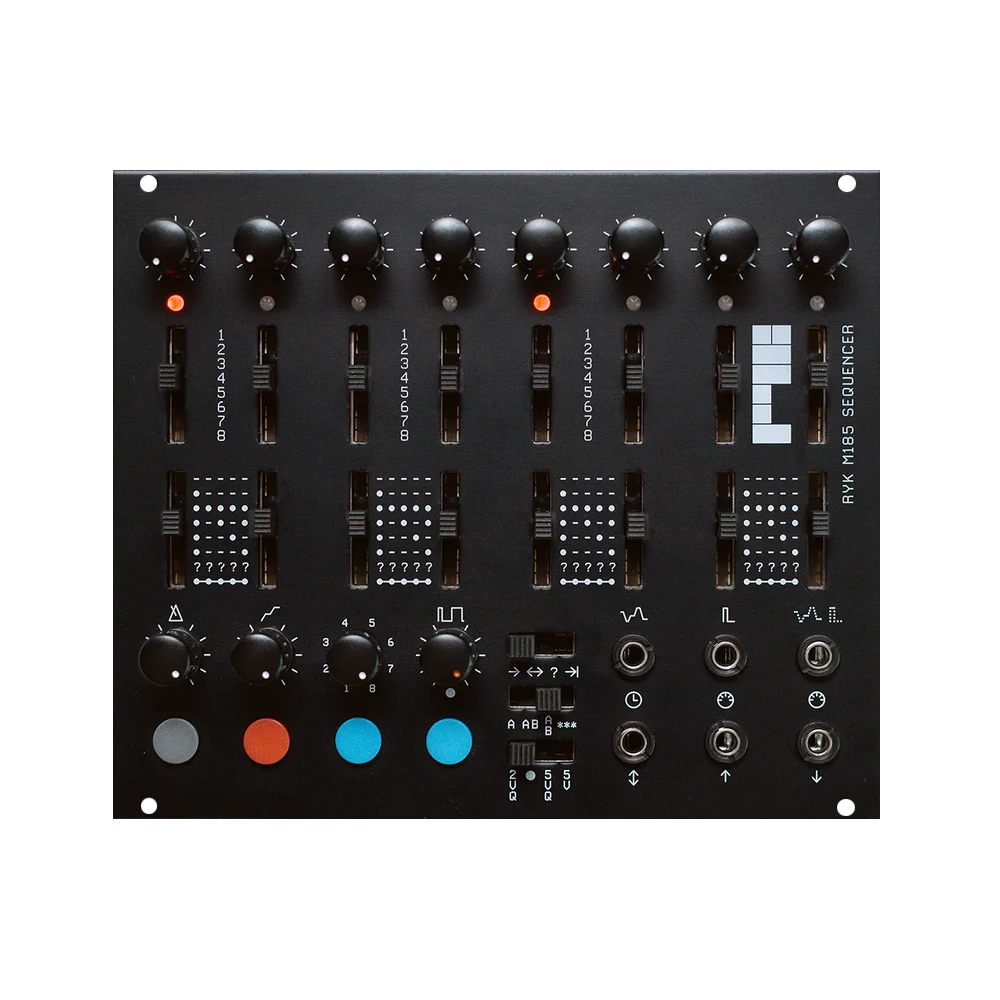

The M185 is the most intuitive and playable Eurorack sequencer.

It appeals as a hands-on performance orientated module for easy creation of complex melodic sequences.

It is the original multi-step-per-stage sequencer that inspired the Metropolis and Metropolix modules.

– Features an expansion header for chaining two M185s for 16 stage sequences
– Lots more quantisation scales
– Live X0X style Gate Pattern programming

OVERVIEW

– 8 unique gate modes for creative rhythmic possibilities
– A/B split mode for two separate sequences, like having two sequencers in one box
– 2 channels of CV/GATE and MIDI I/O
– 15 Quantise scales OR pure analogue microtonal CV output

INPUTS & OUTPUTS

– 2 channels of CV and Gate outputs
– Expansion header to connect two M185s for 16 stage sequences
– Reset input [ shared with MIDI input ]– Sync output [ shared with CH2 gate ]– Bidirectional Clock I/O
– MIDI input for MIDI clock in, MIDI note transpose
– MIDI output for MIDI clock out, MIDI note output

STAGE DETAILS

– 8 stages, each with innavidual 1-8 step repeats per stage
– 8 gate modes per stage [ Off, Once, All, 1/2, 1/3, 1/4, Probability or Programmable, and Long ]– Programmable gate patterns for ‘on the fly’ X0X style programming of gate triggers

EVEN MORE DETAILS !

– AB serial split sequence mode with 1-8 sequence repeats for AAABAAAB sequence structures
– AB parallel split mode, for two separate simultaneous sequences that play at the same time
– Root note offset and reset trigger options from sequence B to A
– 2.5V / 5V voltage range selectable
– MIDI note output including programmable velocity
– MIDI to CV converter mode [wow]– Programmable glide per stage
– Easy user upgradable firmware using MIDI sysex files

TECHNICAL STUFF

– +12V = 75mA average, 110mA peak
– 12V = 10mA
– Width: 30 HP
– Depth: 25 mm
– Black anodised Aluminium panel, silkscreen in RAL 9002
